HBL Series

  30W / 60W / 80W / 150W / 200W

  120-277VAC / 347-480VAC

  IP66 Rated

  ETL Certified – Hazardous Location

The perfect solution for low/high bay lighting applications in demanding environments. This fixture provides high output LED’s along with high-quality construction offering industry-leading performance and durability for your hazardous area lighting needs.

Options Available

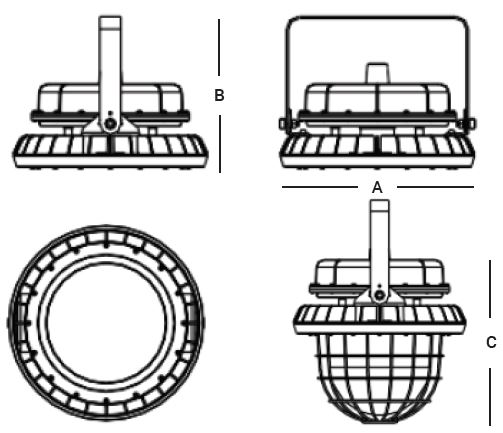

Mounting: Standard Bracket / Pendant Mount / Wall Mount / Stanchion Mount
Cable Whip: 18 AWG SOOW / Plug End / Twist Lock / Inline Fusing
Comparable to: 70W-1000W HID
Certified for hazardous locations: CLASS I, DIV. 2 GROUPS A,B,C,D - T3 | CLASS II, DIV. I, GROUPS E,F,G / DIV. 2 GROUPS E,F,G - T3 | CLASS III - T3

Spec Sheet - HBL SERIES

IES Files - Coming Soon

Installation Manual - Coming Soon

Specifications - HBL Series Bay Light

Voltage 120-277VAC or 347-480VAC
Power Factor ≤ 95%
LED Luminous Efficiency 140 (Lm/W)
Colour Temperature 4000-5700K
Colour Rendering Index Ra ≥ 70
Maximum Intensity Angle 40° / 60° / 90° / 120°
Work Temperature -40°C to +50°C (30W-80W)
-40°C to +40°C (150-200W)
Work Humidity 15% to 95% RH
Chip Life Expectancy 80,000 Hours (LM-70)
Fixture Aluminum Alloy Housing
Lens Optical Glass
Weight 3.5-8.2kg
Protection IP66
Approved  ETL Listed / Tested To CSA and UL Standards



Applications

• Oil & Gas Facilities
• Electrical Buildings
• Mining Environments
• Forestry Facilities
• Indoor / Outdoor
Applications
• Harsh Conditions
• Processing Facilities
• Manufacturing
• Hazardous Areas

Our Warranty

We have a standard full replacement 5-year warranty.
